Home >  Products >  Robot Systems >  Positioner

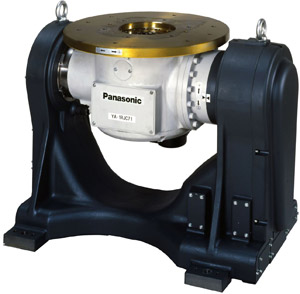

Positioner

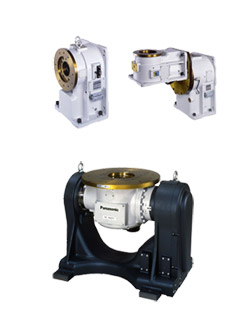

Single-axis positions/Side mount 2-axis positions

YA-1RJC62, YA-1RJC72, YA-1RJB12, YA-1RJB22, YA-1RJB32

Realized better welding quality, faster welding speeds and smaller footprint of the robotic welding.

Features

  • ■ Best-in-class motion speed.
  •      Maximum speed is twice that of conventional models.(1000kg tpe)
  • ■ Slim design allow compact welding system.
  •      Depth is about 30% smaller then conventional models.(500 kg type)
  • ■ Space-saving cable connection method.
  •      Cable protruding length is less then haft of conventional models.(120mm)
  •      Connection to the other side is available as an option.
  • ■ Dust proof construction and Large hollow shaft diameter..
  •      Ø 75mm (1000 kg type), Ø 55mm (500/250 kg type)

Function

Positions for robot Panasonic
Positions

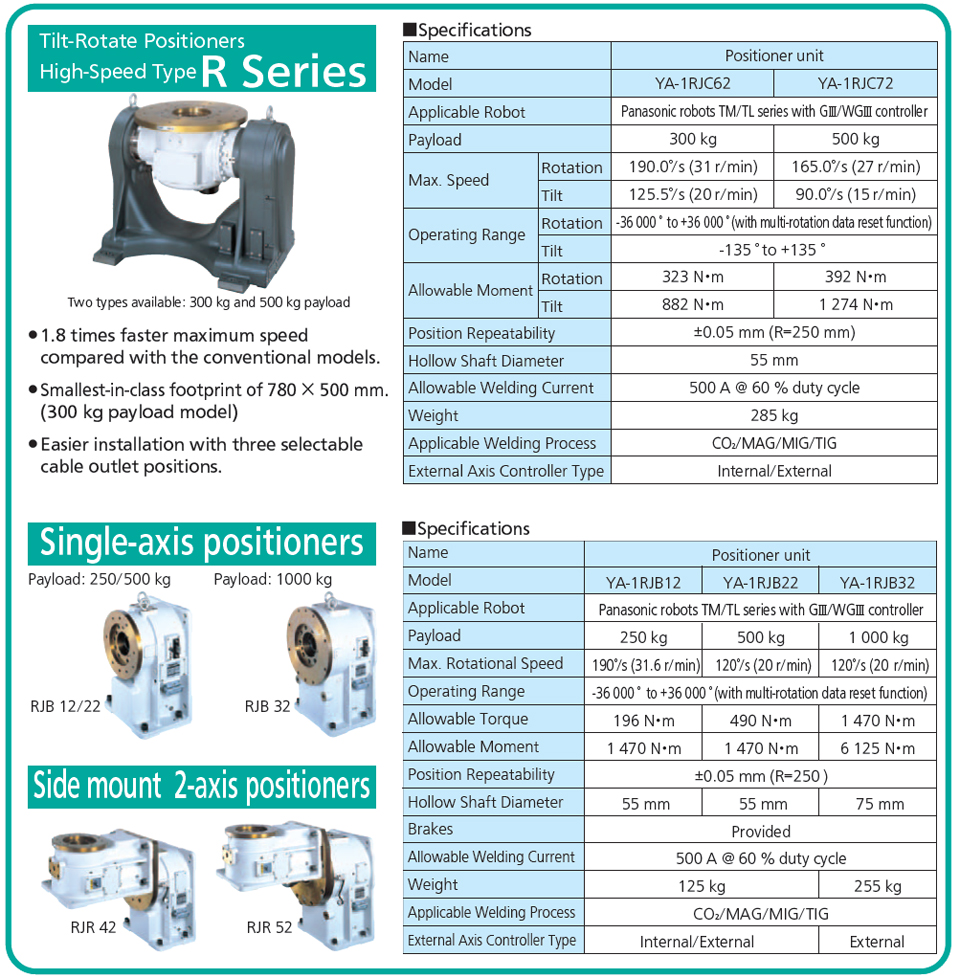

Specification

positions panasonic data

Related products

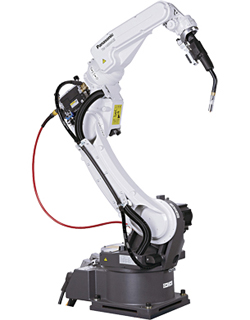

robot Panasonic
